In general, hash table (Suppose that the size of the hash table is much adequately larger than the maximum number of possible entries. Therefore, very few data collision occurs.) is the most commonly used one for constructing a symbol table of a compiler.
Memoization是一種優化技術,透過將函式執行後的結果暫存起來(快取),當下次再次以相同參數呼叫時,就能直接從快取中提取結果,而無需重新計算,藉此提升程式執行速度。

scaling main question resource allocation ideal state math model main challenge
Strong Scaling 「增加處理器能讓這件事快多少?」 總量固定,處理器越多,每個分到的越少 \(Speedup = N\) (處理器數量) Amdahl's Law

\(Speedup = \frac{1}{s + \frac{1-s}{N}}\)

Communication Overhead,導致效率邊際遞減
Weak Scaling 「增加處理器能讓我多做多少事?」 人均固定,處理器越多,總量隨之膨脹 \(Efficiency = 100\%\) Gustafson's Law

\(speedup=s+(1-s) \times N\)

Memory Bandwidth & Global Synchronization

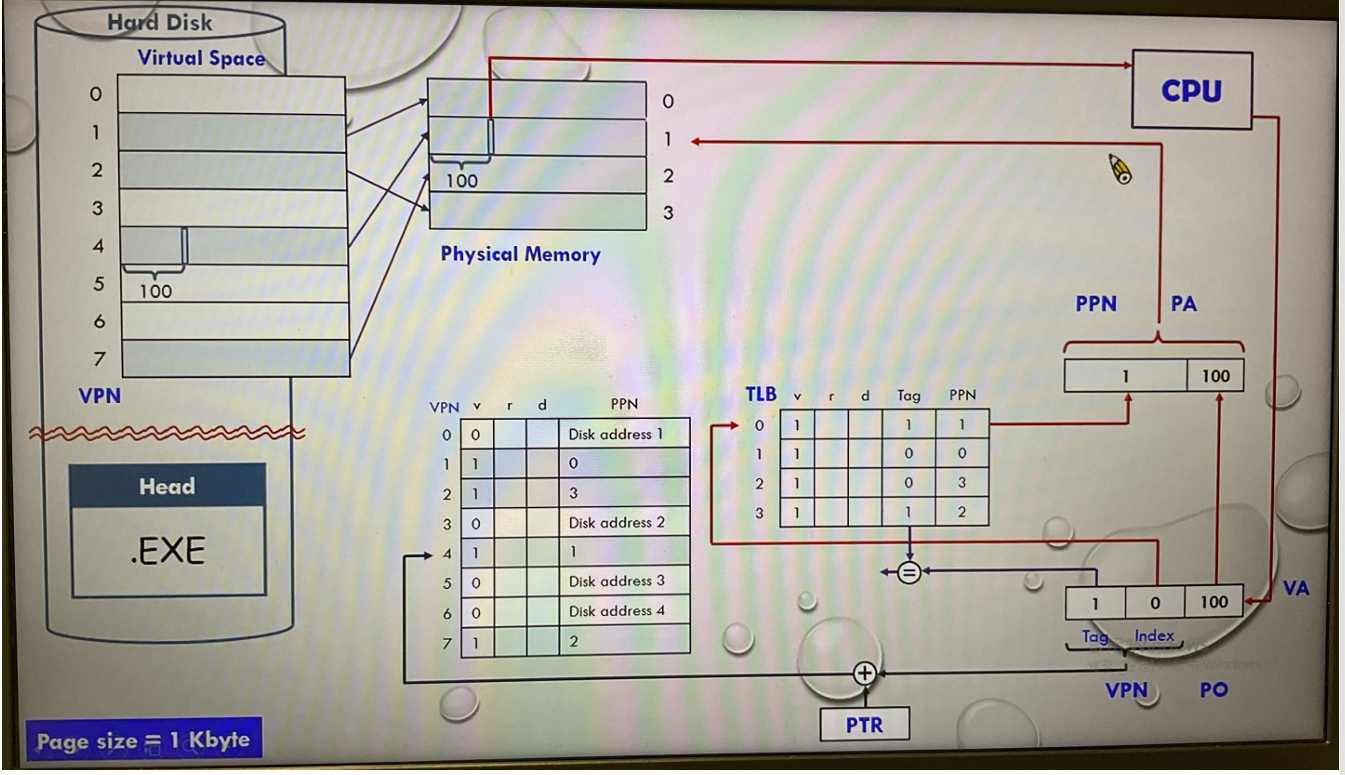

Multilevel paging: 假設每個 page table 剛好佔一個 page

「每個 page table 剛好佔一個 page」的設計,使得記憶體配置、位址切割、硬體查表與效能實作都能保持規則、對齊、且高效。

原因 說明
1️⃣ 管理方便 作業系統配置實體記憶體時以「頁 (page)」為最小單位。若每個頁表剛好佔一頁,則建立、釋放與置換都能以整頁為單位進行,管理簡單且不浪費空間。
2️⃣ 位址切割整齊 若每頁表剛好一頁,則「每層索引 bits」=log₂(頁內可放的表項數)。這讓虛擬位址可整齊分為:
‧ 第1層索引 bits
‧ 第2層索引 bits
‧ offset bits
3️⃣ 查表邏輯簡化 每層頁表的每個表項剛好對應下一層page table的一個「整頁起始位址」。硬體 (MMU) 查表時不需考慮跨頁問題。
4️⃣ 對齊整潔 (alignment) 所有page table都與實體記憶體的frame邊界對齊,運算中只需簡單位元偏移計算。
5️⃣ 效能與硬體實作簡化 若page table可跨頁,硬體必須處理跨page邊界,邏輯與記憶體取用會更複雜、速度更慢。

狀況 是否要查 Page Table(主記憶體) 是否要取資料(主記憶體) 總次數
TLB hit + cache hit 0 次主記憶體存取(全cache命中)
TLB hit + cache miss 1 次(從 memory 取資料)
TLB miss + cache hit 1 次(查 page table)
TLB miss + cache miss 2 次(最糟情況)


類型 觸發來源 性質 目的
Interrupt(中斷) 硬體裝置外部事件 觸發 非同步 (asynchronous) 告訴 CPU 某件外部事件需要立即處理,如鍵盤輸入、磁碟 I/O 完成
Trap(陷阱) / System Call(系統呼叫) 使用者程式 主動執行軟體指令觸發 同步 (synchronous) 讓使用者程式請求作業系統服務(如開檔、寫檔、分配記憶體)

Interrupt ──► 硬體事件觸發 → 進入核心處理 → 回到使用者程式

Trap ──► 軟體事件觸發 → 進入核心處理 → 回到使用者程式

└── System Call = 使用者主動呼叫作業系統服務的 Trap



trap or interrupt flow :

1.事件發生 (trap or interrupt issued)

→ 當使用者程式執行異常、發出系統呼叫 (trap),或外部裝置產生中斷 (interrupt) 時,會觸發此流程。

2.控制權轉移 (control transfer)

CPU 透過中斷向量表 (Interrupt Vector Table) 或陷阱向量表 (Trap Vector),跳轉到作業系統對應的中斷/陷阱服務常式 (Service Routine)。

3.模式切換 (mode bit switch)

● CPU 將模式位元 (Mode Bit) 設為 Kernel Mode
● 系統進入核心模式後, CPU 可存取所有受保護的資源與硬體。

4.執行服務程式 (Interrupt/Trap Service Routine)

● Service routine是作業系統的一部分。
● 核心根據中斷號碼或陷阱代號 (Trap ID) 判斷是何種事件並執行對應的服務。

5.保存與恢復狀態 (Save and Restore Context)

● 核心會先儲存當前的 CPU 狀態(暫存器、程式計數器等),以便事件處理結束後能恢復原執行狀態。
● 事件處理完成後,核心會將先前保存的狀態恢復。

6.執行相應的服務或例外處理 (Service or Exception Handling)

● 若為系統呼叫 → 執行對應的核心服務。
● 若為硬體中斷 → 讀取裝置狀態或完成 I/O 處理。
● 若為例外 (Exception) → 採取錯誤處理機制(例如除以零錯誤、記憶體違例等)。

7.返回使用者程式 (Return to User Program)

● 處理完成後,控制權傳回被中斷或陷阱發生前的程式位置。
● CPU 模式切回 User Mode,恢復正常程式執行。

system call flow :

1.使用者程式發出 Trap 指令(issue a trap)

→ 用來「呼叫 (invoke)」系統呼叫。

2.控制權轉移 (control transfer)

CPU 透過 Interrupt Vector 或 System Call Vector,跳轉至作業系統對應的 Service Routine(服務常式)。

3.模式切換 (mode bit switch)

● CPU 將 Mode Bit 設為 Kernel Mode
● 現在 CPU 擁有完整的系統資源存取權限。

4.執行系統呼叫服務程式 (System Call Service Routine)

● Service routine 是作業系統的一部分。
● Kernel 檢查the interrupting instruction(or System Call ID) to determine what system call has occured.

5.解析與檢查參數 (Parameter Passing)

● 系統呼叫參數 (system call parameters) 說明使用者想請求的服務。
● 參數傳遞方式可能有: registers, stack, memory(以指標傳遞給核心)

6.kernel檢查請求是否合法

● 若參數正確 → 執行請求的服務。
● 若不合法 → 傳回錯誤碼給使用者程式。(例如「Permission Denied」或「Invalid Argument」)

7.完成服務後返回

● kernel完成系統呼叫的動作後, 將控制權 (control) 傳回到「系統呼叫指令的下一條指令」。
● 模式切回 User Mode,繼續執行使用者程式。

The comparison-based sorting algorithm on n data requires \(Ω(nlogn)\) time

\(f(n)\)為polynomial-bounded\(\iff\) \(logf(n)=O(logn)\)

\(log(n!)=Θ(nlogn)\)

\(H(n)=1+1/2+1/3+1/4+...+1/n,∀ n \in \mathbb{Z}^{+} , H(n)=Θ(logn)\)

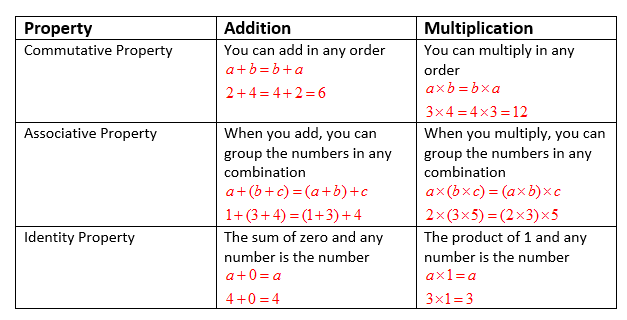

gcd is associative on integer:gcd(gcd(a,b),c)=gcd(a,gcd(b,c)).set difference(-),division(/),implication(->),cartesian product(x) is not associative.

Methods of Proof: \(\text{direct method, contrapositive method}(P \implies Q \equiv \neg Q \implies \neg P \equiv \neg P \lor Q) \text{and contradiction method(反證法)}\)

\(P \implies Q\), \(Q\) is a Necessary Condition for \(P\). \(P\) is a Sufficient Condition for \(Q\).

Open interval: \( \{ x \mid a < x < b \} \), 以\(\left( a,b \right)\)表示之, a ○───────○ b

Closed interval: \( \{ x \mid a \le x \le b \} \), 以\(\left[ a,b \right]\)表示之, a ●───────● b

Cantor's Theorem:For two arbitrary infinitely countable sets A and B, both \(2^A\) and \(2^B\) are uncountable.

Truth Table

P Q Conjunction AND P∧Q Disjunction OR P∨Q Negation NOT ~P
T T T T F
T F F T F
F T F T T
F F F F T

(a)onto (b)one-to-one (c)one-to-one且onto

(a)\(onto: \forall \text{y} \in \text{Y}, ∃ \text{x} \in \text{X } \text{s.t.} \text{ f(x)=y}\) (b)\(1-1: f(x_1)=f(x_2) \implies x_1=x_2\)

n件相異物不允許重複取r件排列

\[ P^n_r = \frac{n!}{(n-r)!} \]

n件相異物允許重複取r件排列

\[ n^r \]

n件相異物不允許重複取r件組合

\[ C^n_r = \binom{n}{r} = \frac{P^n_r}{r!} = \frac{n!}{r!(n-r)!} \]

n件相異物允許重複取r件組合

\[ C^{n+r-1}_r = H^n_r \]
\[ x_1+x_2+x_3+...+x_n=r,\forall x_i>=0 \]

m個相異物放至n個相異箱子,允許空箱

\[ n^m \]

m個相異物放至n個相異箱子,一個箱子至多放一物

\[ \text{1-1}(m,n) = P^n_m \]

m個相異物放至n個相異箱子,不允許空箱(排容)

\[ \text{onto}(m,n) = \sum_{i=0}^{n} (-1)^i \binom{n}{i} (n-i)^m = \text{s}(m,n) \times n! \]

m個相異物放至n個相同箱子,不允許空箱

\[ \text{s}(m,n) = \frac{\text{onto}(m,n)}{n!} \text{(stirling number of 2nd kind)} \]
\[ \text{s}(m,n) = \text{s}(m-1,n-1)+n \times \text{s}(m-1,n) \]

m個相異物放至n個相同箱子,允許空箱

\[ \text{s}(m,n)+\text{s}(m,n-1)+\text{s}(m,n-2)+...\text{s}(m,1) \]

相同球->相異箱 整數解

相異物->相異箱 函數,onto

相異物->相同箱 stirling s(m,n)

相同球->相同箱 整數分割->無解


Different types of distances used in ML

Minkowski distance:

\[ \left( \sum_{i=1}^{n} |x_i - y_i|^p \right)^{\frac{1}{p}} \]

Euclidean distance: (Minkowski distance → p is 2)

\[ \sqrt{\sum_{i=1}^{n} (x_i - y_i)^2} \]

Manhattan distance: (Minkowski distance->p is 1)

\[ \sum_{i=1}^{n} |x_i - y_i| \]

Chebyshev distance: (Minkowski distance->p is ∞)

\[ \lim_{p\to\infty} \left( \sum_{i=1}^{n} |x_i - y_i|^p \right)^{\frac{1}{p}}=\max_i |x_i - y_i| \]

Hamming distance:

\[ \sum_{i=1}^{n} [x_i \neq y_i] \]

perpendicular (adj.) : at an angle of 90° to a horizontal line or surface;垂直的


scalability interoperability sustainability


Unmounted file system: 該檔案系統存在於裝置上,但目前沒有被接到系統的目錄樹中,因此作業系統與使用者都無法透過路徑存取它.

Mounted: 檔案系統已經被接到作業系統的目錄樹中,可以透過路徑存取
e.g. CMD: MOUNTVOL
C:/,D:/

entitlement: 系統明確授予某個程式或使用者的「權限 / 能力」

Access Control

類型 核心概念 典型例子 優點 缺點
DAC (Discretionary Access Control) Owner decides UNIX 檔案權限 易用 容易被濫用
MAC (Mandatory Access Control) 系統強制 policy SELinux, Bell-LaPadula 高安全 管理麻煩
RBAC (Role-Based Access Control) Role → Permission 大企業角色管理 易管理 角色設計難
Rule / Capability-Based AC 持有能力或符合規則 Process / App / Resource,Apple entitlements 精確控制 規則複雜

類型 圖的性質 主要演算法 找到的東西 時間複雜度
SCC(Strongly Connected Components) 有向圖 (Directed Graph) Kosaraju's AlgorithmTarjan's SCC Algorithm 強連通分量 O(V + E)
BCC(Biconnected Components) 無向圖 (Undirected Graph) Tarjan's BCC Algorithm 雙連通分量(邊或點) O(V + E)

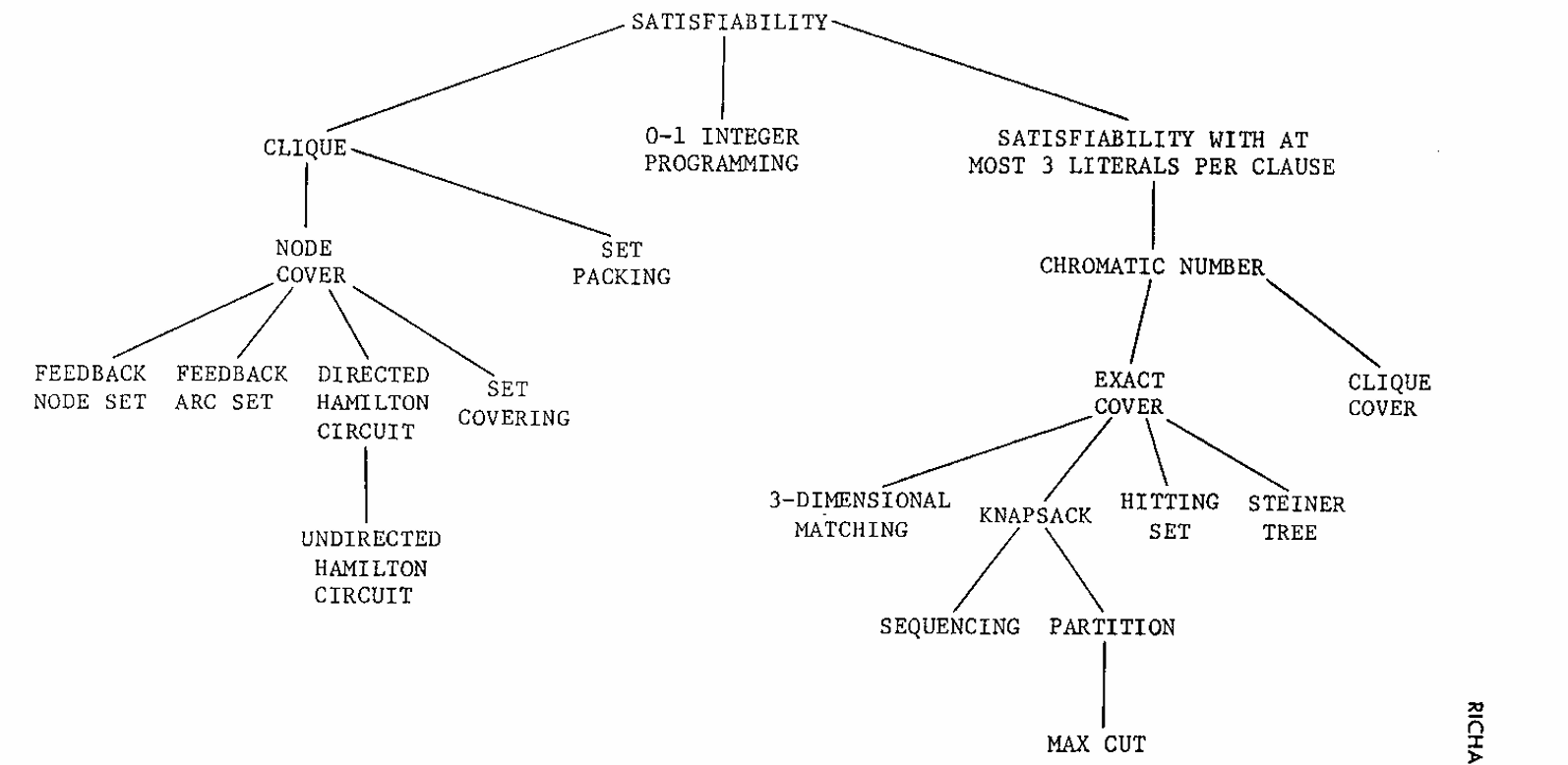

基本上這世界上的問題可以分類為:
(1) Unsolvable Problem
(2) Intractable Problem
(3) NP-Problem
(4) P-Problem

The halting problem(a problem to determine whether or not any arbitrary program can stop) is undecidable
The halting problem is undecidable and therefore strictly harder than any NP-hard problem in terms of computability.

若\(\text{A}≤_p\text{B}\), 則\(\text{B}\)為polynomial-time solvable \(\implies \) \(\text{A}\)為polynomial-time solvable

若\(∃\)一個\(\text{NP-complete}\)的問題為polynomial-time solvable, 則\(\text{P}=\text{NP}\)

任意P皆可\(≤_p\)P, NP, NP-complete, NP-hard

NP\(≤_p\)NP-C

NP\(≤_p\)NP-Hard

NP-C\(≤_p\)NP-Hard

P\(≤_p\)NP

P\(≤_p\)NP-C

P\(≤_p\)NP-Hard

P:\(A \in \text{P} \), \(\text{B}≤_p\text{A}\), 則\(\text{B}\)為P

NP-hard:\( \forall A \in \text{NP} \), \(\text{A}≤_p\text{B}\), 則\(\text{B}\)為NP-hard

NP-complete:若\(A \in \text{NP} \)且\(\text{A}\)為NP-hard, 則\(\text{A}\)為NP-complete


(a)若\(\text{P}≠\text{NP}\) (b)若\(\text{P}=\text{NP}\)


Any problem in P can be reduced to SAT in polynomial time.

If SAT has a polynomial time algorithm, then P =NP.

SAT is NP-complete.


C/C++ operator precedence

優先順序 運算子 關聯性 說明
1 () [] a->b a.b a++ a--左至右括號、陣列、成員存取、遞增、遞減
2 !a~a+a -a*a &a(type)asizeof 右至左邏輯非、位元非、正負號、指標解參考/取址、型態轉換、sizeof
3 a*b a/b a%b 左至右乘法、除法、餘數
4 a+b a-b 左至右加法、減法
5 a<<b a>>b 左至右左移、右移
6 a<b a<=b a>b a>=b 左至右小於、小於或等於、大於、大於或等於
7 a==b a!=b 左至右等於、不等於
8 a&b 左至右bitwise AND
9 a^b 左至右bitwise XOR
10 a|b 左至右bitwise OR
11 a&&b 左至右logical AND
12 a||b 左至右logical OR
13 a ? b : c 右至左條件運算子
14 a=b a+=b a-=b a*=b a/=b a%=b a&=b a^=b a|=b 右至左賦值、複合賦值
15 a, b 左至右逗號運算子

            #include <stdio.h>

            int main() {
                char s[] = "01234";
                char *p = s;

                printf("%c\n", *p++);
                printf("%c\n", *++p);
                printf("%c\n", *(++p));
                printf("%c\n", *(p++));
                printf("%c\n", (*p)++);

                return 0;
            }
            output:
            0
            2
            3
            3
            4


特性 觸發方式 安全性 典型範例 主要功能
Promotion (提升) 編譯器自動執行(Implicit) (通常從小空間轉大空間,不遺失資料) char \(\rightarrow\) int or float \(\rightarrow\) double 確保算術運算能順利進行(對齊型別)
Cast (強制轉型) 程式設計師手動撰寫 (Explicit) 中/低(可能導致精度遺失、截斷或溢位) (double)5/2 or (int)3.14 改變變數的解讀方式或強制改變運算行為
